Multi Channel Remote Control PCB

Multi Channel Remote Control PCB

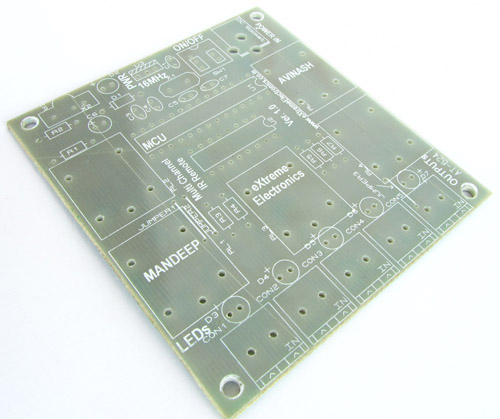

PCB Top View. PCB Back View. PCB Soldered with All Parts
SKU SKU00203
Weight 25.00 grams

Our price: Rs30.00 ($0.62)
Quantity Out of stock

CoinCash On Delivery (COD)

Click here to check COD availability at your area

Delivery Schedule(reach you in 4 days)

Jul

23

Jul

24

Jul

25

Jul

26

Jul

27


↑ TODAY ↑ DISPATCHDELIVERY ↑

This is the bare PCB for our project "AVR ATmega8 based Multi Channel Remote Control".

PCB Features

  • FR4 Material
  • Solder Mask (prevents solder bridges)
  • Silkscreen (Top white markings)
  • Tinning (For perfect soldering)
