MicroSD (TF) Module

This module simplify the electrical connection of Micro SD card with general purpose MCUs like AVRs and PICs. The board brings out all SPI pins of microSD card via standard 0.1 inch headers. The board features on board 5v to 3.3v LDO (regulator), power and activity indicator LEDs, SD Pull-up resistors, 5v to 3.3 volt level shifter IC. This board is fully compatible with 5v MCUs.

Resources.

• SD Card Based Data logger. (Thanks Mr. C.C. Dharmani from Chennai)

NOTE: This product is for advanced users only. As this board does not has much of magic (its just electrical no software) we cannot help the users in anyway during their experiment.

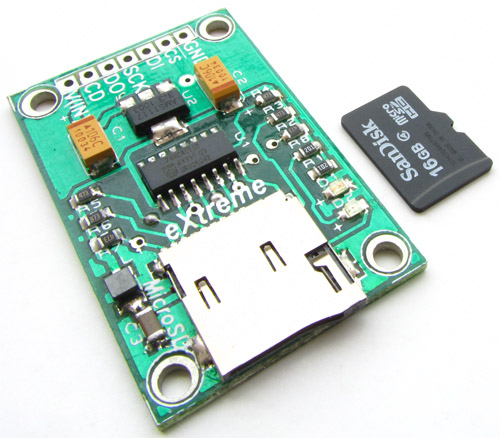

NOTE: 16GB MicroSD Card shown in the image is NOT included.
