Easy 8051 Development Kit

This Development KIT helps users to quickly develop applications for the 8051 based MCUs like AT89S52. The KIT includes everything to program the microcontroller using the USB Programmer. After programming the microcontroller the code can be run on the dev board. All port pins are easily accessible. The free prototyping area gives the designers ability to add other hardware components to the board. For example if you would like to control a robot from this board then you can easily add motor controller ICs in the board's free area.

Package Contents

• 1 x USB 8051 Programmer.
• 1 x Development Board.
• 1 x USB 2.0 Cable.
• 1 x FRC Cable 10 PIN (To Connect Programmer with Dev Board).
• 10 x F/F Wires.
• 40 pin Male Header(breakable).
• 5 x Screws, 5 x Nuts, 5 x Spacers (Mounting Kit).
• 2 x 2 PIN Relimate Connector.
• Driver, Software, Manual on DVD.(Click To Download ...)

Development Board Features

• AT89S52 Included (AT89S51 and AT89S8253 also supported)
• 5v voltage regulator.
• On/Off switch.
• Power Indicator LED
• Reset Button
• MAX232 based TTL to RS232 Adaptor.
• 9 PIN D Type Female Connector for RS232 Communication.
• 24MHz Crystal.
• 10 PIN FRC Box Header for In Circuit Programming.
• Pullups on PORT0.
• Free Prototyping Area.

Programmer Features

eXtreme Burner 51 is a High Quality but low cost USB port based programmer for the popular 89S series MCUs (from Atmel). The main advantage of eXtreme Burner 51 over other programmer is the USB connectivity. These days Laptops are becoming popular among students and professionals. Modern Laptops and even desktops does not have any legacy ports like Parallel and Serial Ports and so many device programmers cannot be used with them. So solve these problem we have designed a programmer that is far ahead of these programmers and perfectly fits in modern days.

1. USB Port based - Compatible with both Laptops and Desktops.
2. Easy to Use Windows Based Software.
3. In circuit Serial Programming (ISP) support.
4. Supports 89S51,89S52,89S8253 chips.
5. Ultra Compact Design.
6. 3 Months Replacement Warranty.
7. 15 Days Money Back Guarantee.

USB 89S Programmer - Software Feature

1. User friendly
2. Robust with reliable error detection and reporting.
3. Supports reading and writing of flash memory
4. Supports .hex and .ihx
5. Allows Saving of Flash Contents in .hex files.
6. Lock Bits Reading and Writing support.

Fig. : eXtreme Burner 51 - Main Screen

Fig. : eXtreme Burner 51 - Burn Progress

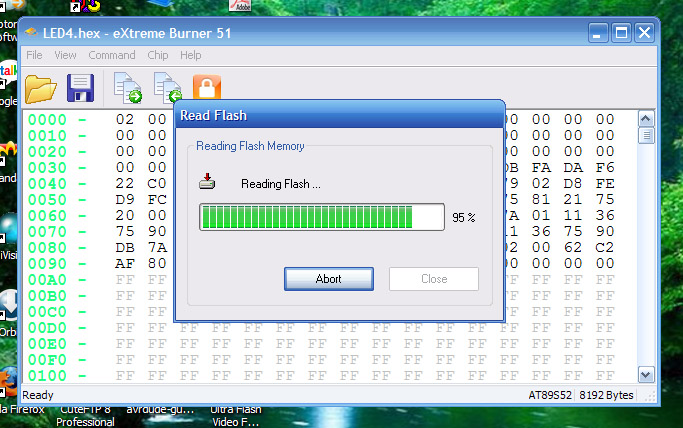

Fig. : eXtreme Burner 51 - Reading On Chip Flash Memory.
