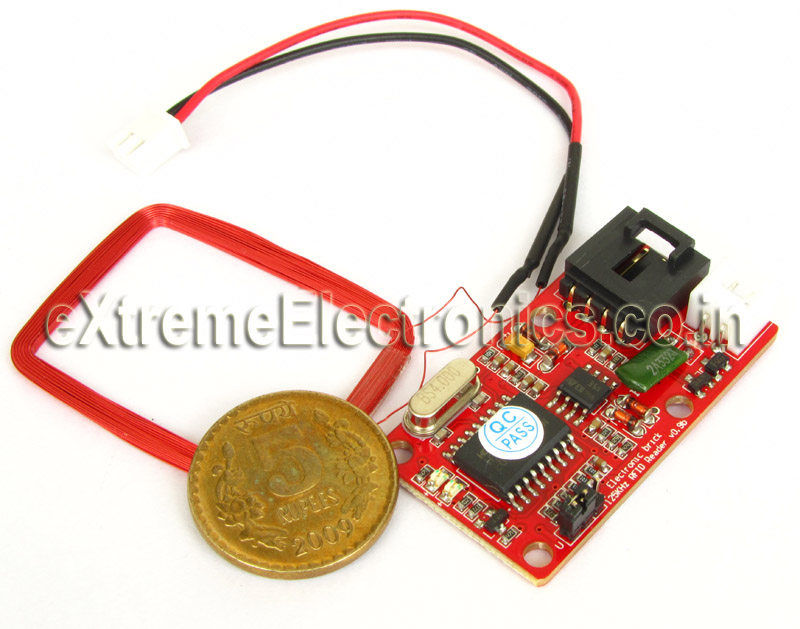

125KHz RFID Reader Module

Easy to use RFID Reader Module with Serial Interface. The module supports two data formats, UART and Wiegand. You can select the one you want to use via a jumper. Set the jumper to UART side (labeled 'U' on PCB) to use UART mode. The UART data format is as follows.

• TTL output (5V), 9600baudrate, 8 data bits, 1 stop bit, and no verify bit.

RFID Reader Features

• Support external antenna (Included with the module)
• Maximum effective distance up to 150mm
• Less than 100ms decoding time
• UART TTL interface
• Support EM4100 compatible read only or read/write tags
• Small outline design
